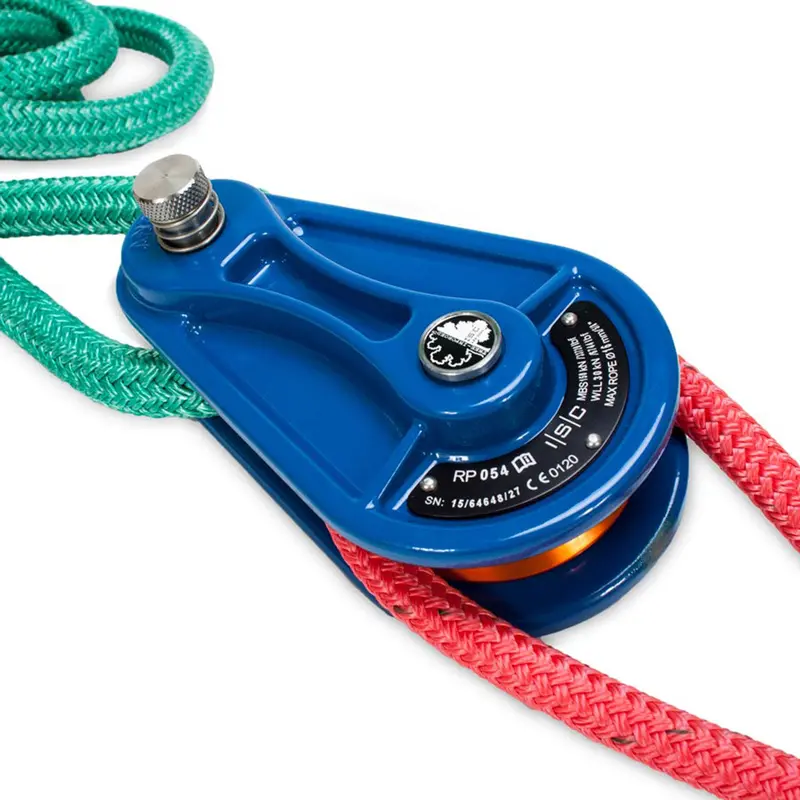

Description
The new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 150kN (33000lbs) MBS and a WLL of 30kN (6600lbs).
The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.
The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.
Technical Data
Approved standards CE 0120
| SKU: | 8524 |
| Material: | Aluminum |
| MBS (kN/lbs): | 150kN/33,000lbs |
| WLL (kN/lbs): | 30kN/6,600lbs |
| Max Working Line Size: | 5/8″ / 16mm (77kN/17,000lbs)** |
| Topping Strop Size (MBS)*: | 1″ / 25mm (172kN/37,800lbs)** |
*Above figures based on using Yale Polydyne or Double Esterlon rope.
**Above figures based on using Yale Portland braid and 16mm dead eye sling.
View Datasheet
View Product Instructions
