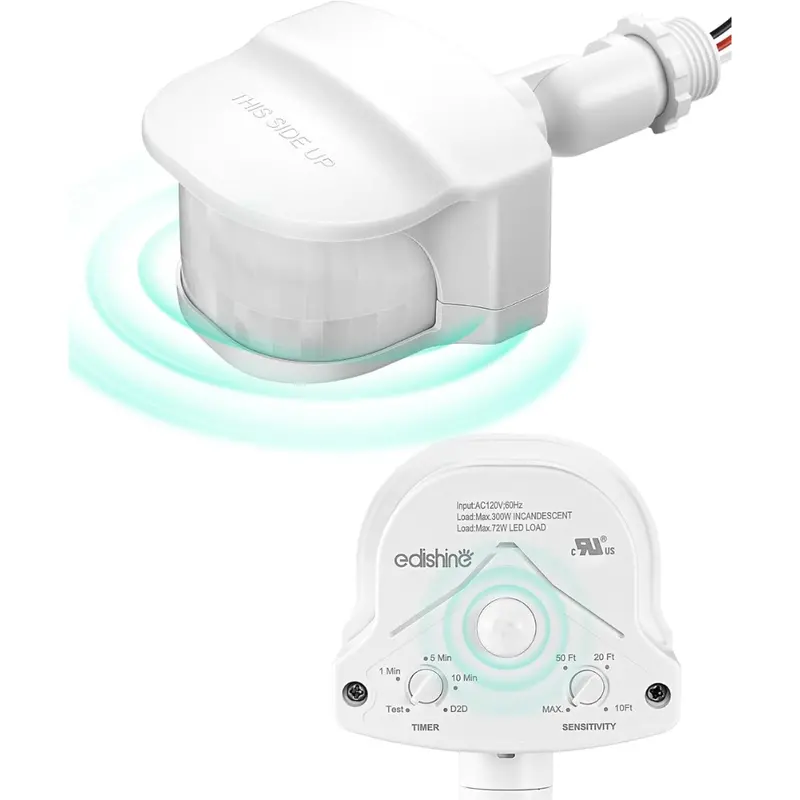

Dual-Angle Pir Motion Sensor – 240° And 360° Detection Modes, 120V Line Voltage, Ip65 Weatherproof, Wireless-Compatible For Outdoor Security Flood Light Activation

Description

• Auto Mode with Long-Range Motion Detection
  Built-in PIR motion sensor provides sensitive and reliable detection. The light turns ON when motion is detected and OFF after 1–10 minutes (adjustable).

  • Detects movement up to 60 ft ahead with a 240° sensing angle

  • Detects movement up to 18 ft below with a 360° sensing angle

  • Provides wide, hands-free outdoor coverage without manual switching

• Reliable Dusk-to-Dawn Operation
  Equipped with advanced photocell sensors that automatically turn the light ON at dusk and OFF at dawn, helping save energy and reduce operating costs.

  • OFF → ON: 50–250 LUX

  • ON → OFF: Max. 800 LUX
    Note: Motion detection and delay time functions are disabled in Dusk-to-Dawn mode.

• Convenient Manual Override Mode
  Quickly toggle the wall switch OFF–ON within 3 seconds to activate continuous lighting for up to 8 hours, automatically turning OFF at dawn.

  • Ideal for extended outdoor use

  • No need for frequent switch adjustments

• Easy and Worry-Free Installation
  Designed for simple installation or replacement. Includes 3 color-coded wire nuts for easy wiring identification.

  • UL listed for safety

  • Cost-effective alternative to replacing full motion floodlight fixtures

• Universal Indoor & Outdoor Compatibility
  Operates on 120V AC, 60Hz and is compatible with 3-wire fixtures for both indoor and outdoor applications, including:

  • Garages

  • Driveways

  • Patios

  • Porches

  • Pool areas
    Note: Maximum load is 72W for LED bulbs and 300W for incandescent bulbs.

240° & 360° Replacement Motion Sensor

• Upgraded 2-way sensor technology ensures full coverage of your outdoor space

• Detects motion up to 60 ft forward (240°) and 18 ft downward (360°)

• Enhances security while eliminating the need for manual operation

Specifications

• Power Requirement: 120 VAC, 60 Hz

• Load Rating:

  • Max. 300W Incandescent

  • Max. 72W LED driver / LED bulbs

• Light Sensitivity (LUX):

  • OFF → ON: 10–90 LUX

  • ON → OFF: Max. 800 LUX

• Standby Power Consumption: Max. 0.6W

• Detection Range:

  • Front lens: 10 ft – 60 ft (adjustable)

  • Bottom lens: 11 ft – 21 ft diameter

• Operating Temperature: -30°C to 50°C
