Description

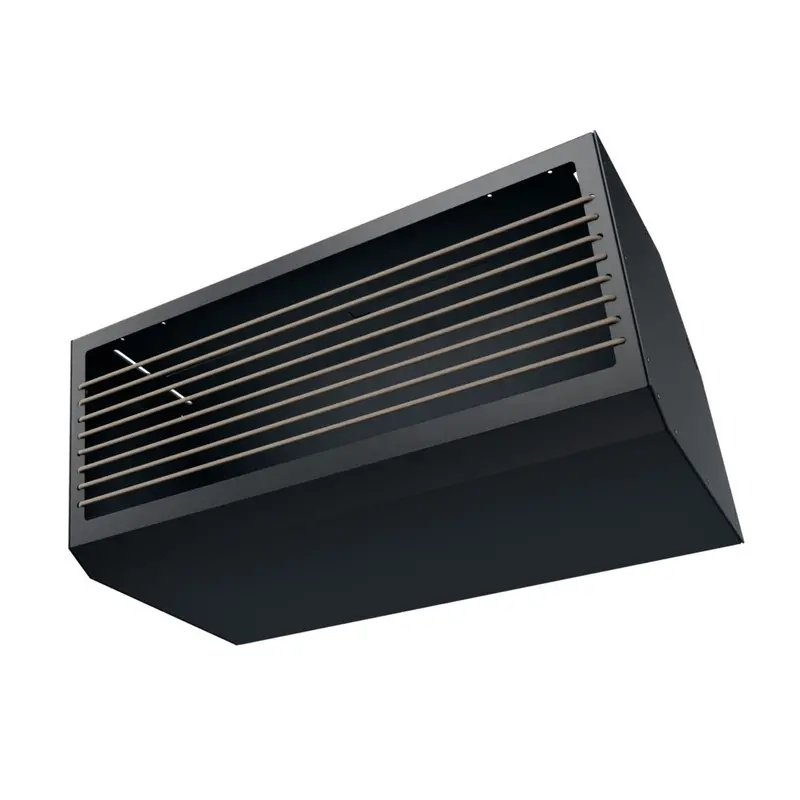

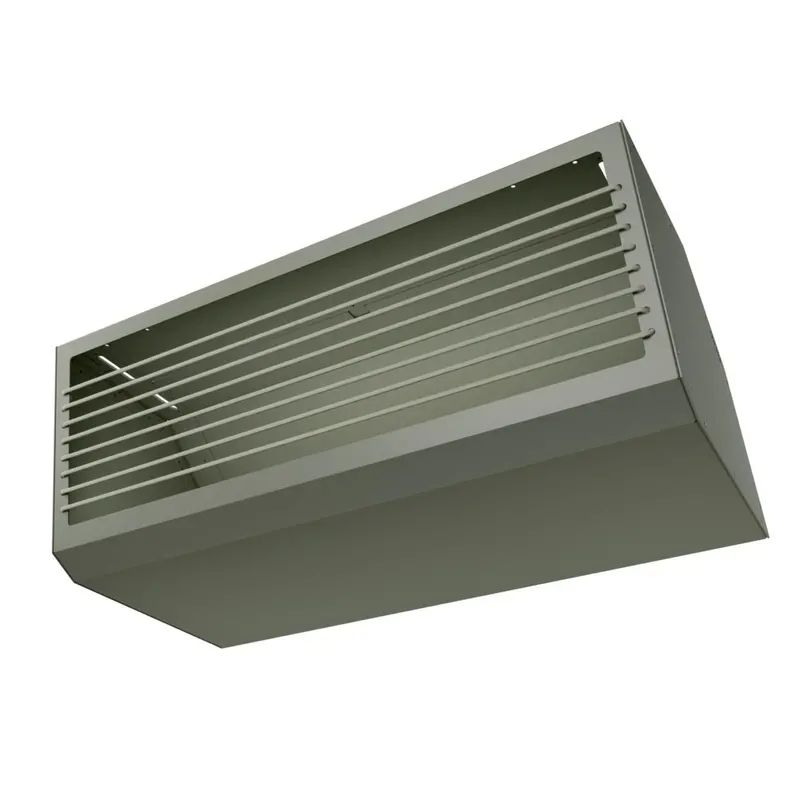

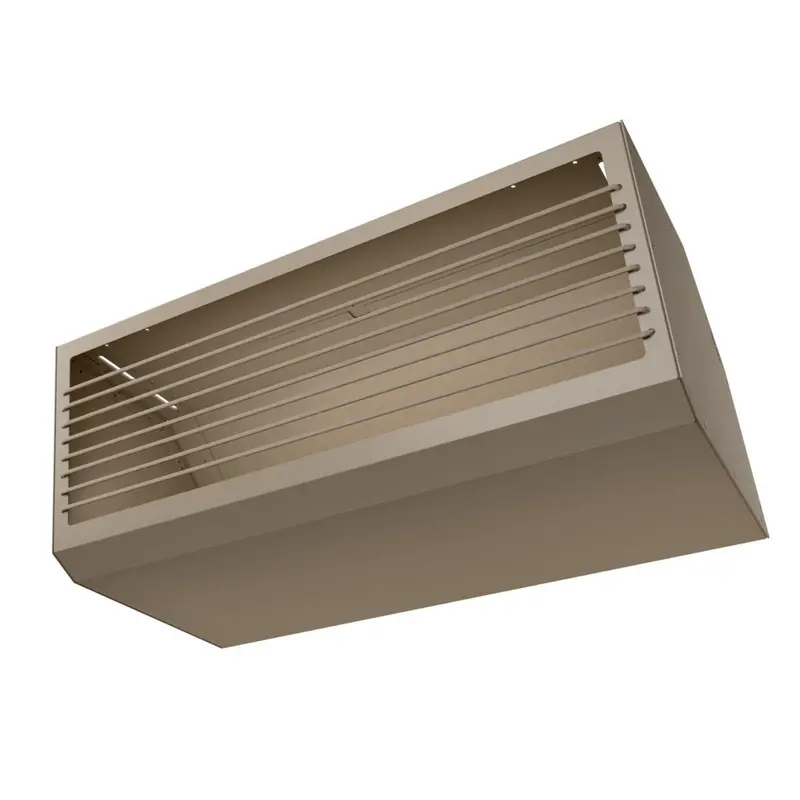

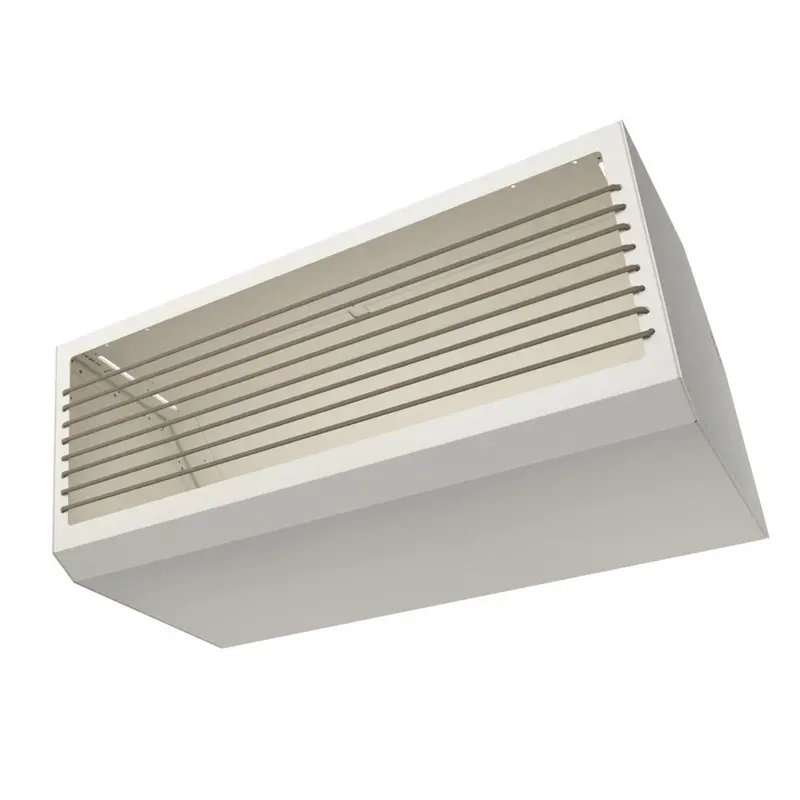

Moon Box SAO 70

Angle 109

The Moon Box SAO is a universal campervan cabinet that fits almost everywhere. It has a deep cut-out in its upper corner and precisely selected rear angles. As a result, fitting the Moon Box SAO is simple and intuitive, allowing installation in many vehicle models on the market. If you are looking for a functional accessory for different vehicle models, this hanging van cabinet is the ideal solution, maximising the use of space in your vehicle.

Its body is made from 1.5 mm aluminium sheet, laser-cut to a ±0.1 mm tolerance. The alloy used shows no tendency to fatigue cracking even under heavy use. A 5 mm elastic expander cord with blockers and stoppers secures loads of various shapes during transport. The entire unit is assembled with flat rivets, commonly used in the aerospace industry, and finished with a specialised powder coat applied by electrostatic spraying.

The Moon SAO is a modular box system available in eight widths – 25, 40, 45, 50, 55, 60, 65 and 70 cm. Sizes 25, 40, 50 and 65 cm can be ordered with an integrated MOLLE grid and lighting, and are available in two angles – 101.5° and 109°.

Features:

• Solid construction
• Fits almost any vehicle.  Choose from 101.5 or 109 degree angles
• Spacious cabinet suspended between the ceiling and the side of the vehicle
• Template to check the fit of angles.
• Easy Installation.
• Light and Durable
• Expander cord for easy access
• Closed back panel
• 2 expanders included
• 2-year warranty

You can mount the Moon Box SAO in two ways – using rivet nuts, or the Moon Fix Bolt A (for Airline tracks) or Bolt B (for Moon Frame 2.0). Enlarged mounting holes increase tolerance and reduce installation time.

The aluminium MOLLE lattice lets you fasten camping or kitchen essentials quickly and securely. It’s additionally equipped with white and red LED lighting. Double-flat rivets, widely used in aviation, make it easier to join modules into longer segments and are completely safe for luggage.

A high-quality expander cord offers quick access to contents while keeping items secure during travel. Unlike the Moon Box IO, the SAO has a fully enclosed back, making it ideal for mounting in a van’s side door. Every Moon Box SAO includes two expanders – one colour-matched and one anthracite – so you can choose which to fit.

The Moon Box SAO was designed with maximum lightness and durability in mind. Made from a high-quality specialist aluminium alloy, it offers not only low weight but also exceptional resistance to damage and no tendency to fatigue cracking. We use high-quality rivets employed in the aerospace industry – flat, galvanised steel, guaranteeing exceptional strength and corrosion resistance. Thanks to their flat profile, when you place several Moon Box SAOs side by side, gaps are minimised, creating a uniform surface. The compact cabinet is coated with powder paint applied by electrostatic spraying, which guarantees a smooth, scratch-resistant finish.

Whether you own Van, or plan to install it on your boat, the Moon Box SAO performs perfectly. With eight widths available (25 – 70 cm), it’s easy to adapt to your needs and available space.

Its height of 26.3 cm and depth of 35 cm allow it to fit perfectly into small gaps that often remain unused in standard conversions. The 25 cm-wide model weighs just 1.7 kg, making installation and relocation effortless – yet it’s strong enough to outlast more than one vehicle!



No matter which Moon Box model you have, the mounting methods are always the same. The mounting holes in all Moon Boxes are located at the same height, so the Moon Box SAO will fit previously prepared mounting points. The Moon Box SAO is ready to use straight out of the box, offering stability and functionality on long journeys.

Moon Box SAO perfectly complements the Titan and Tebe and SAO models, using the same mounting system on a single rail. The SAO is the same height as the IO and Tebe models, while the Titan is 20% taller.  Each Moon Box model maintains the characteristic, extremely durable aluminium construction that our brand is known for.

Note: Due to the production process, there may be slight variations in material shades between production batches. We recommend purchasing in sets.

Suits:

• Volkswagen Crafter up to 2016
• Volkswagen LT
• Mercedes Sprinter
• Ford Transit MK8
• Nissan NV400
• Renault Master 3
• RAM Promaster to H3, H4
• Fiat Ducato III to H3, H4
• Peugeot Boxer II to H3, H4
• Toyota Proace Max to H3, H4

Dimensions:

• Width 70 cm
• Height 26.7cm
• Depth 25.9cm
• Weight (Without Molle) 3.4kg
• Other Widths available: 25, 40, 45, 50, 55, 60, 65cm
• Capacity (Without Molle) 51L
• Shelf Load Limit: 15-20kg
• Angle 109

For mounting Moon Box, you may need Moon Fix Bolt A (for the Airline rail)

No matter which Moon Box model you have, the mounting methods are always the same. The mounting holes in all Moon Boxes are located at the same height, so the Moon Box SAO will fit previously prepared mounting points. The Moon Box SAO is ready to use straight out of the box, offering stability and functionality on long journeys.

Downloads:

• Assembly Instruction Manual
• Moon Box Template
• Product Card
