Description

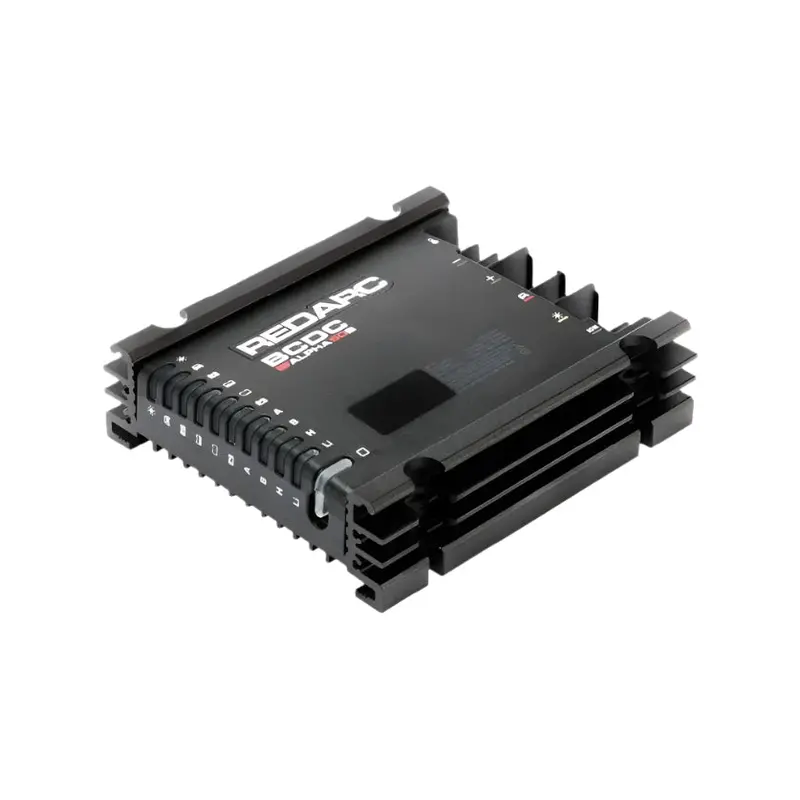

Redarc ALPHA 50A In-vehicle DC Battery Charger

Perfect for charging K-technik 12V 160Ah LiFePO4 Smart Lithium Under-seat Power Station and 12V 314Ah LiFePO4 Smart Lithium Under-seat Power Station For VW T7 Transporter / Caravelle / Ford Transit Custom V710 / Ford Tourneo 2023+ and 12V 314Ah LiFePO4 Smart Lithium Under-seat Power Station For VW Crafter underseat battery in Vans.  The Redarc BCDC Alpha50 is a rugged 12V, 50A DC to DC battery charger, ensuring you’re always charged and never stranded.

This Redarc Alpha 50A features 50A of advanced charging technology.  This DC to DC charger keeps your secondary batteries charged using power from the van’s alternator or solar.    The BCDC Alpha’s built in Green Power Priority™ will prioritise solar input, minimising the load on your alternator and saving fuel.

FEATURES

• 50A Charging from DC and solar power
• Compatible with all common automotive battery types including lithium (LiFePO4)
• Outlast other chargers with IP67/69K dust and moisture protection
• Easy installation with pushbutton interface and screw connections
• Charge back to your start battery with excess solar
• Recover a flat start battery with the push of a button
• Remote monitoring and control from the RedVision app with Bluetooth
• Protect your vehicle’s alternator with adjustable input current limit
• Future proof charging with over-the-air updates

Specifications

GTIN_barcode	9338628010578
Start Battery Input Voltage Range	9 – 32VDC
Solar Input Voltage Range	9 – 48VDC
Nominal Output Voltage	12V
Compatible Battery Types	AGM, Gel, Calcium, Standard Lead Acid, Heated Lithium, Standard Lithium
Nominal Current Rating	50A
Operating Temperature	–40°C to 85°C
Weight	0.96kg
height	44mm
width	146mm
depth | length	164mm
Warranty	2 Years

Features

Monitoring

Instruction MANUAL for REDARC ALPHA 50A

Redarc Alpha 50A Brochure

Redarc Apha Install Guide
